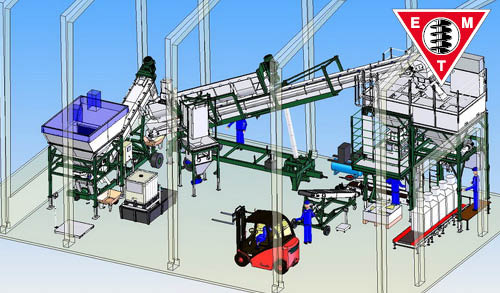

Introducing our innovative portable coating machine with conveyor and bypass – the perfect solution for your coating needs! The sturdy mild steel support frame, constructed with heavy-duty tubular steel and equipped with wheels, allows for easy mobility with the help of a forklift and hitch.CONTACT US
The Main Features
Capacity 80 mᵌ to 200 mᵌ ton per hour.
Conveyor under blend screw with bypass.
The machine features a robust mild steel support frame constructed of heavy-duty tubular steel with wheels, providing a sturdy foundation for the entire design. Atop the frame sits a stainless-steel weighing hopper with a blending screw, transport conveyor, and liquid adding unit, all designed to provide efficient and reliable performance.
The machine’s mobility is enhanced by the two wheels on the frame, which make it easy to move with a forklift’s help, adding to its convenience. The bulk material is discharged through a weighing hopper, controlled by a slide, ensuring a consistent and precise output of the material through the loss in weight system.
The blending screw, designed to mix granular material with liquid or powdery material, has a separate inlet installed to facilitate liquid product input at the screw’s beginning. The blend screw also features a bypass that allows the material to bypass the screw when it doesn’t require blending.
The conveyor, situated underneath the blend screw, has two product inlet points: one at the bottom under the bypass and the other at the end of the blend screw, where the blended material is discharged, reaching heights of up to 6 meters (adjustable height).
The machine comes equipped with a pump installed close to the blending screw that pumps the material from an IBC or tank, providing accurate measurements through the same loss in weight technique.
Our portable coating machine’s user-friendly and intuitive state-of-the-art software system operates through a standalone unit, running on the HMI in the electrical panel, providing reliable performance with every use.
With its advanced features and efficient design, our portable coating machine is the perfect solution for all your coating needs.
